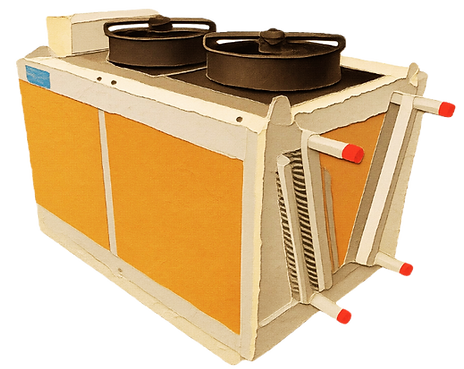

Sequoia Modular Cooling System

A Product of

Adiabatic Cooling

Turn key
Rapid Deployment
600KW– 4MW

  • 600 KW/Module

  • Easily Scaleable

  • Larger Systems Available

Ideal for Arid Climates

Integrated
Pumps, Filtration &
Water Treatment

  • N+1 pumps and fans with variable speed control

  • Single point connections for cooling water, makeup water and power

Integrated,
Standalone
Controller

pictures for The Sequoia Modular Cooling System-3 (dragged) 2.tiff

Our package

A Product,

       not a Construction Project

  • Ease of Maintenance & Replacement Parts

  • Ready to run upon delivery

  • Small footprint

  • Easy to move and adapt

Outdoor Unit Specs

  • ​600KW / Module & up to 4Mw + with additional Modules

  • Dual N+  1 pumps provide 100 GPM* with VFD Speed Control on each module

  • Standard Makeup Water RODI Treatment onboard

  • Standard 50 micron high flow low pressure drop filter

  • All stainless steel piping (including coils)

  • Adiabatic pads for longer life of coils and ease of maintenance

  • bacNet Communications for building controls

  • Controller UPS and ATS for redundant power sources available

  • Process loop heat exchangers and pumps available as well.

pictures for The Sequoia Modular Cooling System-5 (dragged) 2_edited.jpg

Rack Modules

Ultimate Control,

       Ultimate Visibility

  • Pressure independent control valves

  • Standard control  and measure flow, temperature differential and pressure differential

  • Secondary Manual Service Valves

  • All Stainless Steel Construction

  • 99 GPM / rack standard

  • Pre-assembled for rapid field deployment
